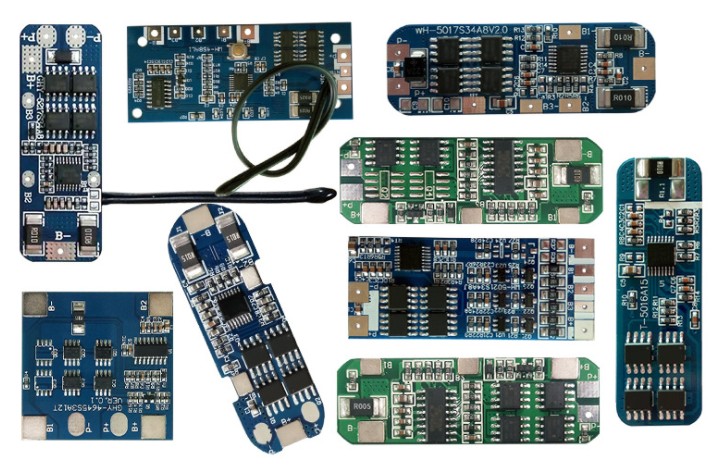

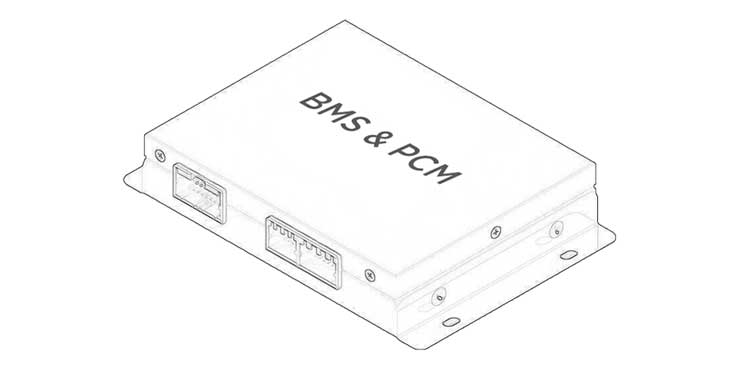

The Battery Management System is a piece of hardware with an electronic system on board that manages a rechargeable battery (cell or pack) and is the link between the battery and it's user. Our BMS includes a control module, a display module, a wireless communication module, and an acquisition module for recording the battery's history.
The acquisition module is connected with the input end of the BMS battery management system; and the output end of the BMS battery management system is connected with the input end of the control module; the control module is respectively connected to ......
There are some shortcomings for rechargeable batteries, such as low rate of power storage, short life cycles, series or parallel circuits, safety, difficulty in estimating battery power, etc. Furthermore the various characteristics of batteries are also very different. BMS system, commonly known as Battery Manager, can more intelligently manage and maintain each cell, improve battery utilization, prevent battery overcharge and discharge, pro-long battery life, and monitor battery status.
Communication Protocol (SMBus, CAN)
Communication Protection
SOC Indicator
Current Detection
Abnormal Log
Self-Inspection
Using Time Record
Charging Over-Voltage Protection
Charging Over-Current Protection
Charging Over-Temperature Alarm/Protection
Charging Low-Temperature Alarm/Protection
Abnormal Voltage Gap Warning
.....
Discharging Over-Current Protection
Discharging Under-Voltage Protection
Battery No-Load Protection
Discharging Short Circuit Alarm/Protection
Discharging Over-temperature Alarm/Protection
......
Self-Heating Technology for Low Temperature
Ultra-Low Power Consumption
Reverse Connection Protection
Self-Discharging in Fully Charged Storage
Zhenghui BMS is mainly designed for high rate lithium battery, which is suitable for UAV intelligent lithium battery pack, providing safety protection, data statistics and intelligent management for 12 cell lithium battery pack.
Our product adopts industrial grade ARM-32 bit processor and matches high-precision AFE front-end acquisition chip to realize precise measurement and intelligent management of key parameters such as voltage, current, temperature, capacity and life cycles of each cell.
01 Supporting 12 cells lithium packs
02 Each cell is monitored in real time separately
03 Three sets of temperature monitoring
04 Overvoltage double protection (single cells & battery packs);
Undervoltage protection (single cell & battery packs)
05 Supporting 12 cells lithium packs
06 Each cell is monitored in real time separately
